Tavi.X0 All Aluminum Thermally Broken Slim
Explore Tavi.X0 All Aluminum Thermally Broken Slim for custom window schedules. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for custom window schedules
Featuring a modern design and effortless operation, the Tavi.X0 Premium multi-slide system provides high-end performance and aesthetic appeal.
Tavi.X0 All Aluminum Thermally Broken Slim: maximum panel height 180"; maximum panel width 120"; stile 2 ⁹⁄₁₆"; style Modern.
Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.

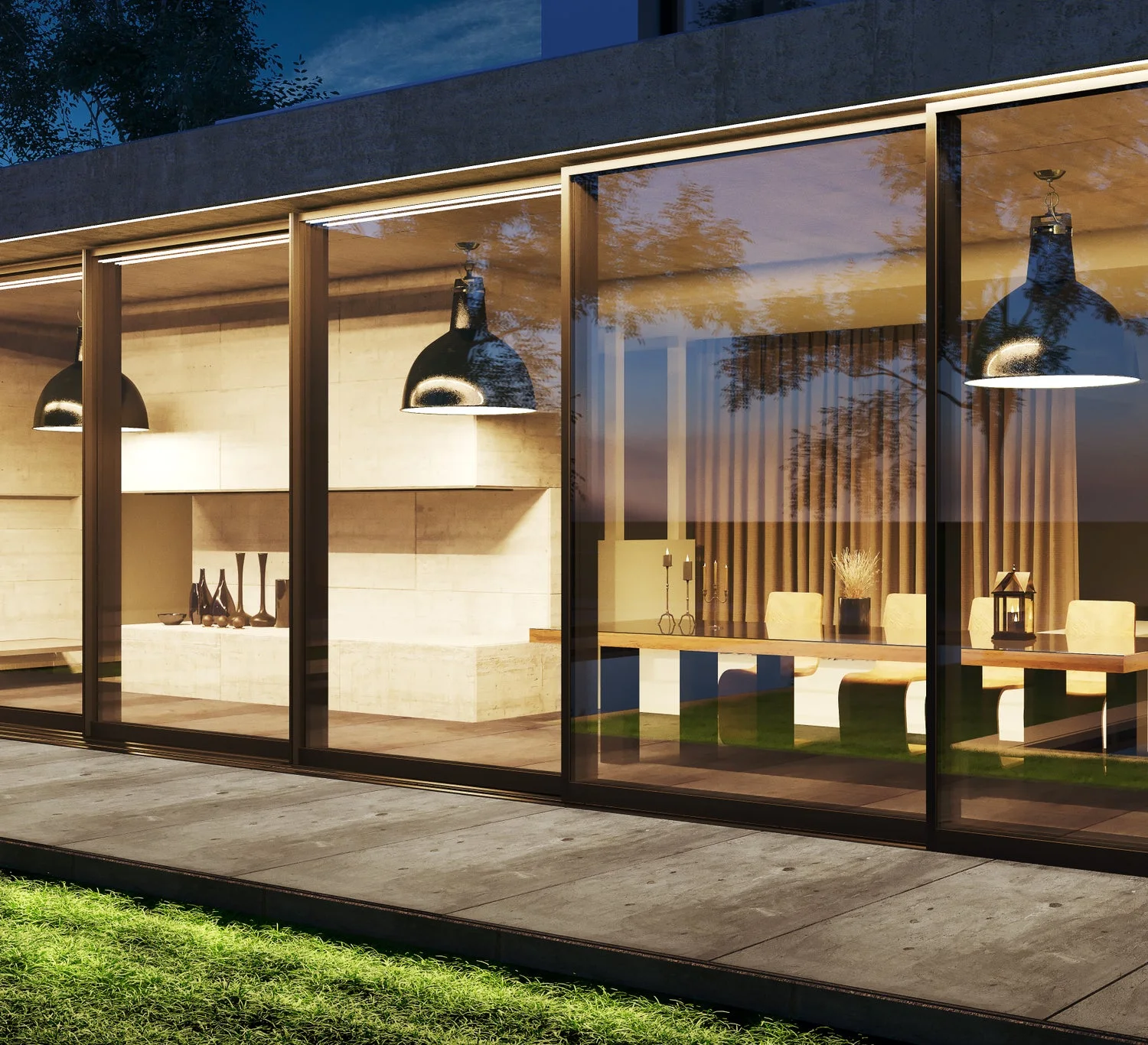

Photography & design details

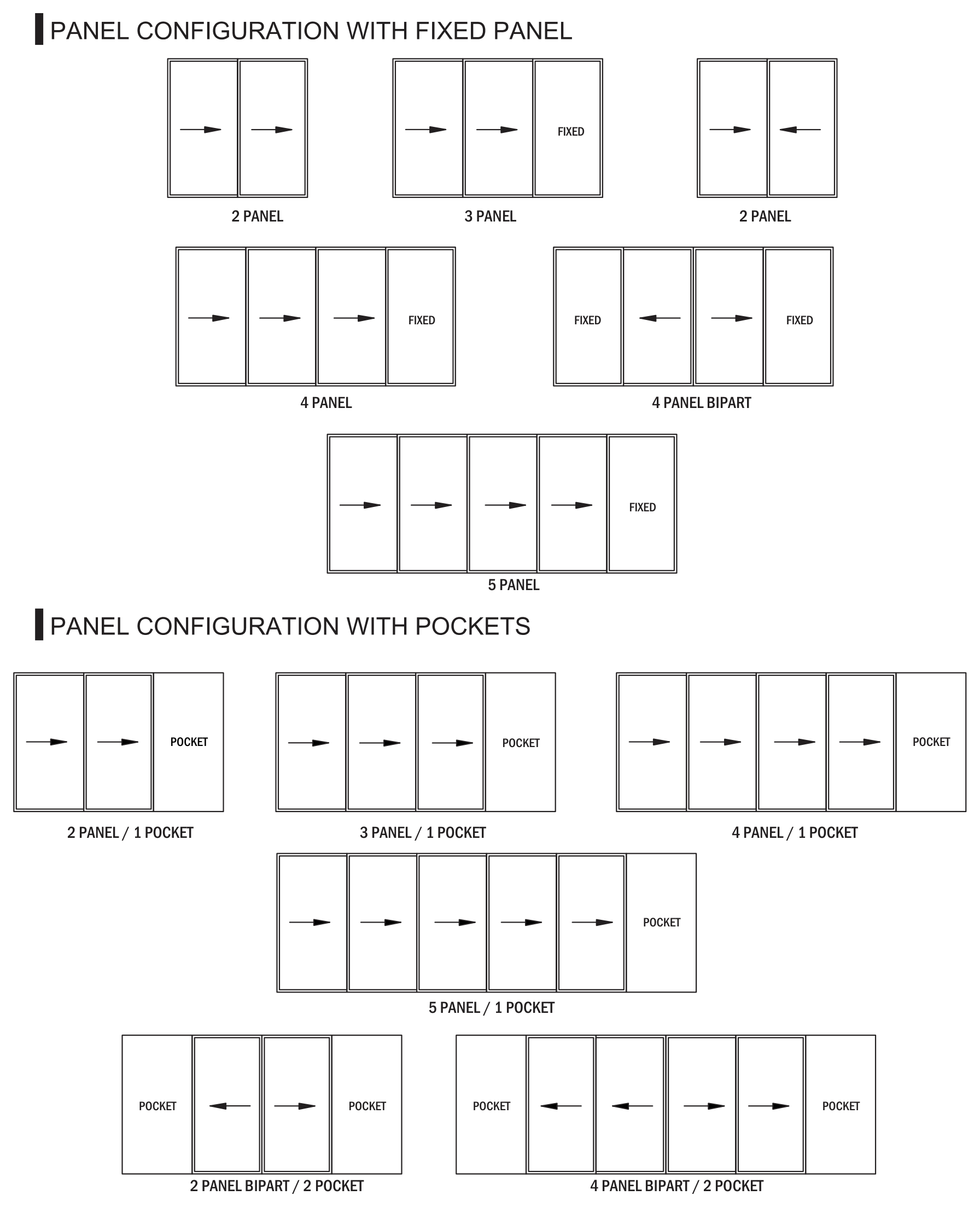

Configuration drawings and planning details
Compare the panel arrangements with the space available beside the opening. Fixed-panel layouts and pocket layouts leave different clear openings and require different parking space. Select the travel direction, panel grouping and track count before finalizing the frame size, pocket or floor recess.
Use the drawings to discuss Tavi.X0 All Aluminum Thermally Broken Slim with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes

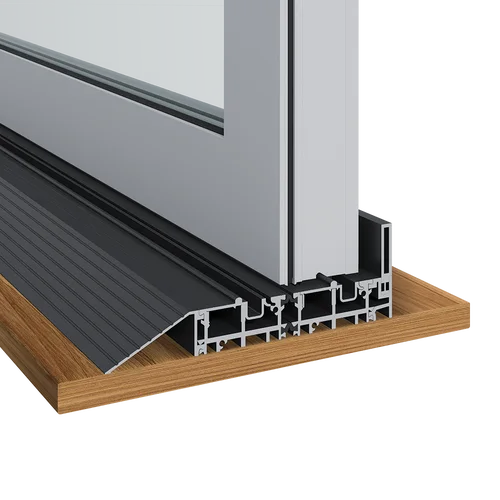

Surface Track

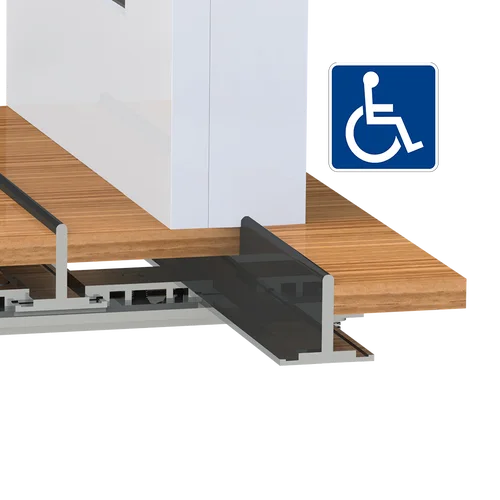

Recessed Tracks
Configurations
Handle
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 180"
- Minimum Panel Height
- 20"
- Maximum Panel Width
- 120"
- Minimum Panel Width
- 22"
- Maximum Panel Weight
- 700 lbs
- Panel Depth
- 2 ⁵⁄₁₆"
- Maximum Number of Panels
- Unlimited for Recessed Tracks
- Stile
- 2 ⁹⁄₁₆"
- Rail
- ¹⁵⁄₁₆" Top; 1 ¹⁵⁄₁₆" Bottom
Design and installation planning
Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Plan the opening
Your project
Request a quote
Tavi.X0 All Aluminum Thermally Broken Slim. Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
