All Aluminum Thermally Broken Casement Window (TIS.67)
Explore All Aluminum Thermally Broken Casement Window (TIS.67) for custom window schedules. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for custom window schedules
This thermally broken impact-resistant casement window offers enhanced insulation and robust protection, ensuring smooth operation and a modern aesthetic.
All Aluminum Thermally Broken Casement Window (TIS.67): maximum panel height 96"; maximum panel width 40"; stile 3 ⅜"; style Modern.
Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

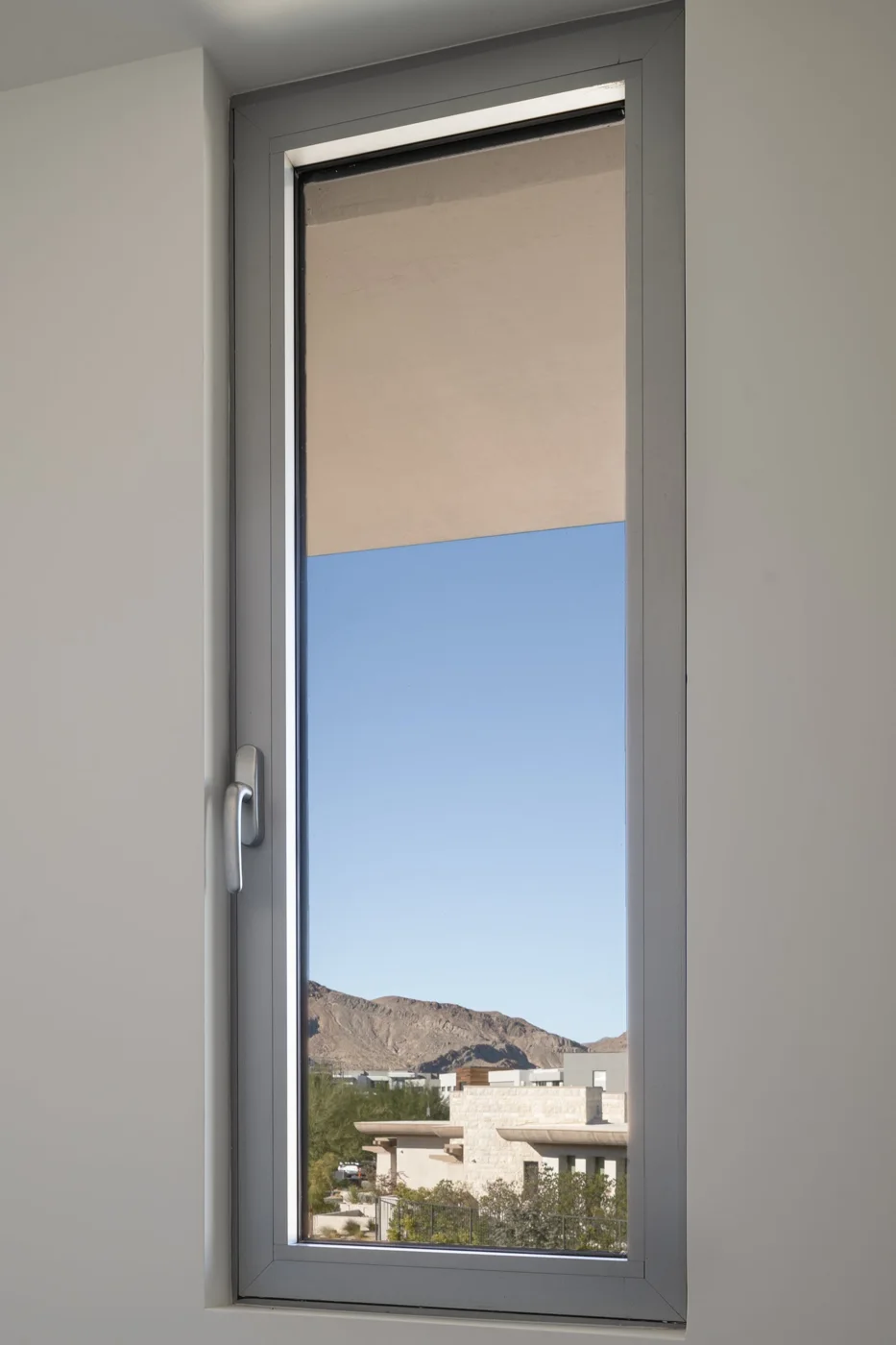

Photography & design details
Configuration drawings and planning details
Read the illustrated operation and frame detail alongside the exact window model. Series drawings can show several window types; select the operating arrangement for this opening and confirm its dimensions, glass and hardware. The wall opening, outside frame and visible glass dimensions serve different purposes and should be recorded separately.
Use the drawings to discuss All Aluminum Thermally Broken Casement Window (TIS.67) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Handles
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- Yes
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 96"
- Minimum Panel Height
- 18"
- Maximum Panel Width
- 40"
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- -
- Panel Depth
- 3 ¹⁄₁₆"
- Maximum Number of Panels
- Unlimited
- Stile
- 3 ⅜"
- Rail
- 3 ⅜"
Design and installation planning
Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Plan the opening
Your project
Request a quote
All Aluminum Thermally Broken Casement Window (TIS.67). Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
